Product Model：W60⚫ Global FM band (60-108 MHz). Supports RDS/RBDS.⚫ Supports DAB/DAB+ BAND III frequencies (160-240 MHz).⚫ Built-in DSP. Supports 10 EQ segments. Supports DRC, virtual bass. Adjustable.⚫ I2S digital audio output (Optional).⚫ Supports Service follow/Slide show function.⚫ Supports direct drive 16Ω or 32Ω headphones. Maximum output power 40mW.
⚫ The DAB sensitivity is greater than -96 dB. The sensitivity test data can be found on pages 17-19.
⚫ Supports the DAB Tick Mark standard.
⚫ Supports 1602, 128X32, 128X64 dot matrix screens. Supports 320X240 TFT screens.
⚫ Supports SD/USB/BT/AUX. Software ERP, arbitrary mode ERP detection. No hardware required.
⚫ Supports CD/MP3 from mode.
⚫ Dual alarms. Snooze function.
⚫ Half-hour clock synchronization.
⚫ USB upgrade. UART upgrade. PC upgrade.
⚫ Single power supply 3.3V-5V.

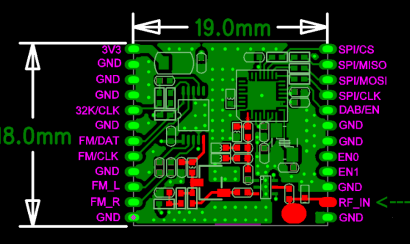

The wRadio-W60 DAB is composed of an RF module and a MCU main chip. The RF module includes the front-end data reception for DAB/FM. The MCU is responsible for demodulation, keying and display.
